Attn: Cvairwerks AN3152/MS25210 REV C

DISCLAIMER: The views expressed on this site are the responsibility of the poster and do not reflect the views of the management.

This is the place where the majority of the warbird (aircraft that have survived military service) discussions will take place. Specialized forums may be added in the new future
Post a reply
bdk
  • bdk
  • Posts: 11319
  • Joined: Sun May 02, 2004 1:16 am

Attn: Cvairwerks AN3152/MS25210 REV C

Thu Feb 29, 2024 1:08 pm

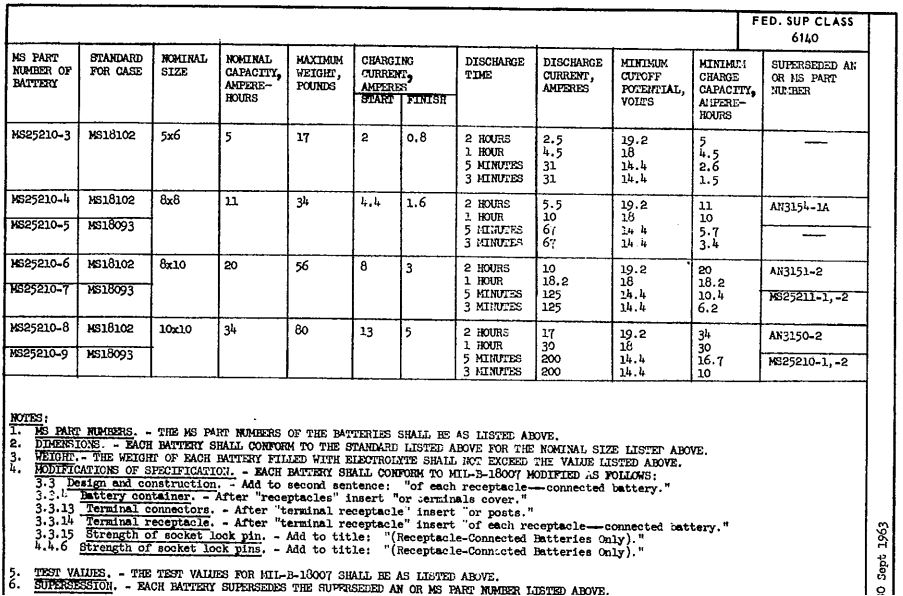

AN3152/MS25210 REV C
Attachments
AN3152/MS25210 REV C
bdk
  • bdk
  • Posts: 11319
  • Joined: Sun May 02, 2004 1:16 am

Re: Attn: Cvairwerks AN3152/MS25210 REV C

Thu Feb 29, 2024 1:15 pm

AN3152 REV 3 CANC
Replaced by: No Replacement
BATTERY - 12 VOLT 34 AMPERE HOUR SHIELDED STORAGE
Attachments
Battery Dimensions
Cvairwerks
  • Cvairwerks
  • Posts: 1459
  • Joined: Mon Jun 14, 2004 8:41 pm
  • Location: North Texas

Re: Attn: Cvairwerks AN3152/MS25210 REV C

Thu Feb 29, 2024 2:19 pm

Most appreciated on being able to find it. Now I just need some time to get it into CAD and figure out how to build a few of them.
bdk
  • bdk
  • Posts: 11319
  • Joined: Sun May 02, 2004 1:16 am

Re: Attn: Cvairwerks AN3152/MS25210 REV C

Thu Feb 29, 2024 5:31 pm

Cvairwerks wrote:Most appreciated on being able to find it. Now I just need some time to get it into CAD and figure out how to build a few of them.
Glad that works for you. Lots of good small batteries with a higher power density that will fit inside.

Wanted to put the attachments in our PM discussion but couldn't figure out how.
