Type 407 and Type 421 Wellington Mark V
Second and first prototypes respectively: three were built, designed for pressurized, high-altitude operations using turbocharged Hercules VIII engines.
Wellington Mark VI
One Wellington Mark V with Merlin 60-series engines, high-altitude prototype only.

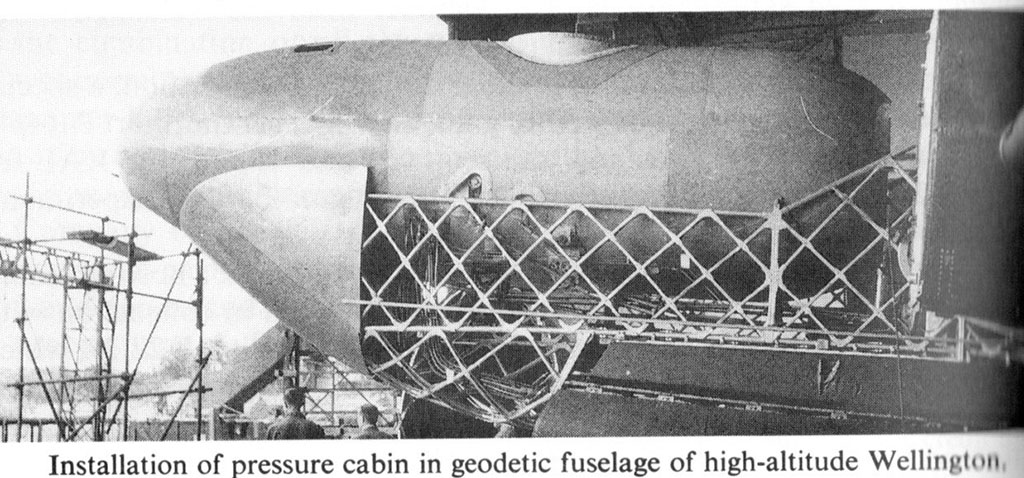

In response to Operational Requirement OR.94 calling for a bomber capable of operating at a cruising height of 35,000 feet over 2,200 miles, Vickers proposed the Mk.V and Mk.VI variants of the Wellington, around which Specifications B.23/39 and B.17/40 were written. The aircraft were fitted with a pressurised cabin in the forward fuselage and ultimately a 12 feet increase in wingspan. The two variants differed mainly in their powerplants, with the Mk.V having the Hercules Mk.VIII and the Mk.VI the Merlin 60; prototypes of both were built at Vickers’ Experimental Section site at Foxwarren, Cobham, a few miles from Weybridge. They first flew in 1940 and 1941 respectively, but a change in air staff policy led to second thoughts about the value of high-flying bombers and consequently only the Mk.VI was ordered into limited production, with sixty-four being built at Weybridge between May 1942 and January 1943 and assembled at Smith’s Lawn temporary airfield in Windsor Great Park. Testing at A&AEE Boscombe Down commenced with W5795 but on 12 July 1942 the aircraft dived at high speed from altitude, breaking up before it reached the ground, with the loss of Sqn Ldr Cyril Colmore and his crew. The probable cause was the failure of a propeller blade which penetrated the pressure cabin and hit the pilot. In December 1942, a production Mk.VI DR484 was used to demonstrate its true performance and included a cruising altitude of 34,000 feet (which the aircraft took fifty minutes to reach), an estimated range of 1,100 miles, and a height over the target of 37,100 feet.
The aircraft was operated by a crew of four; pilot, navigator, bomb aimer and wireless operator, all housed in the forward pressure cabin. The need for air gunners was removed as the turrets were to be operated remotely from the cabin and sighted via a periscope. In the event the only service use was with one flight of 109 Squadron which received four aircraft (W5801, W5802, DR480, DR484) as GEE trainers and for Oboe trials in concert with Mk.ICs T2513 and X9678 of the Telecommunications Flying Unit (TFU) Defford, Worcestershire with trials also being flown from Tempsford. The remainder of the Mk.VI fleet was struck off charge and scrapped between March 1943 and August 1944.
A Mk.VI DR480 was to be have been fitted with a British Thomson-Houston built W.2B jet engine in November 1942, but these trials were delayed until 26 January 1943 and the aircraft was re-allocated for use at TFU Defford without being converted
Type 407 and Type 421 Wellington Mark V were the second and first prototypes respectively: three were built, designed for pressurised, high-altitude operations using turbocharged Hercules VIII engines.
Wellington Mark VI
The Mk VI was developed at the same time as the Mk V, but using Rolls Royce Merlin 60 engines, providing 1,600 hp. These proved more successful than the Hercules III engines used in the Mk V, but high-altitude flight provided problems of its own, as many of the liquids used in the aircraft froze in the extreme cold. Sixty four Mk VIs were produced, and it was intended to use them with pathfinder squadrons to mark targets for the main bomber force, but by the time the Mk VI was ready for service the Mosquito had appeared, and was very obviously better suited to the role. The Mark VIs never saw combat, though two were flown by a service squadron for a short time, presumably as operational evaluation. Most of the Mark VI bombers were converted to “Wellington Mark VIG” trainers for the Gee radio precision bombing system. The surviving Mk VIs were scrapping in 1943.
Mk.V Type 407, 421, 426, 436, 440, 443 – 3 built
Hercules III 1,425 hp. High-altitude bomber to operate up to 40,000 ft. Prototypes R3298 & R3299 first flown August 1940. One further aircraft W5766. Type 443 one aircraft for Hercules VIII tests
Mk.VI Type 431, 439, 442, 443, 449 – 64 built
Wing span 86 ft 2 in length 61 ft 9 in height 17 ft 8 in, gross weight 30,450 lb, service ceiling 38,500 ft, range 2,275 miles with 1,500 lb bomb load. Merlin 60 1,600 hp. High-altitude bomber. Prototype W5795 plus 63 production aircraft, some used as GEE trainers by one flight of 109 Squadron which received 4 aircraft.
https://weaponsandwarfare.com/2019/03/1 ... -variants/

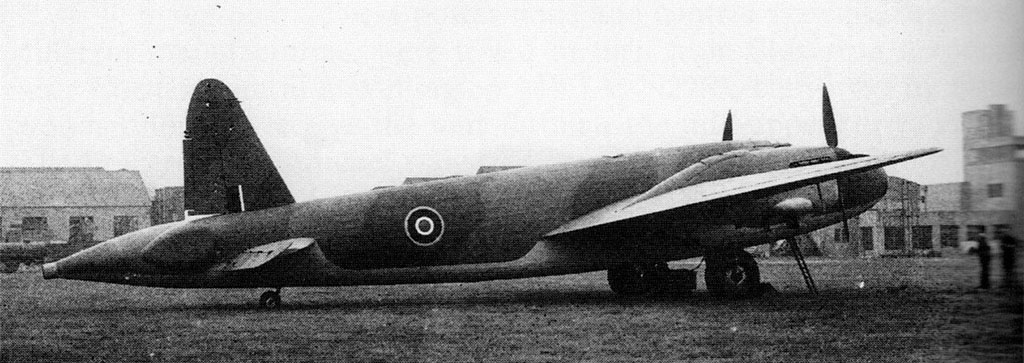

Vickers Wellington V first prototype, R3298. A pressurised high-altitude bomber
