Hello,

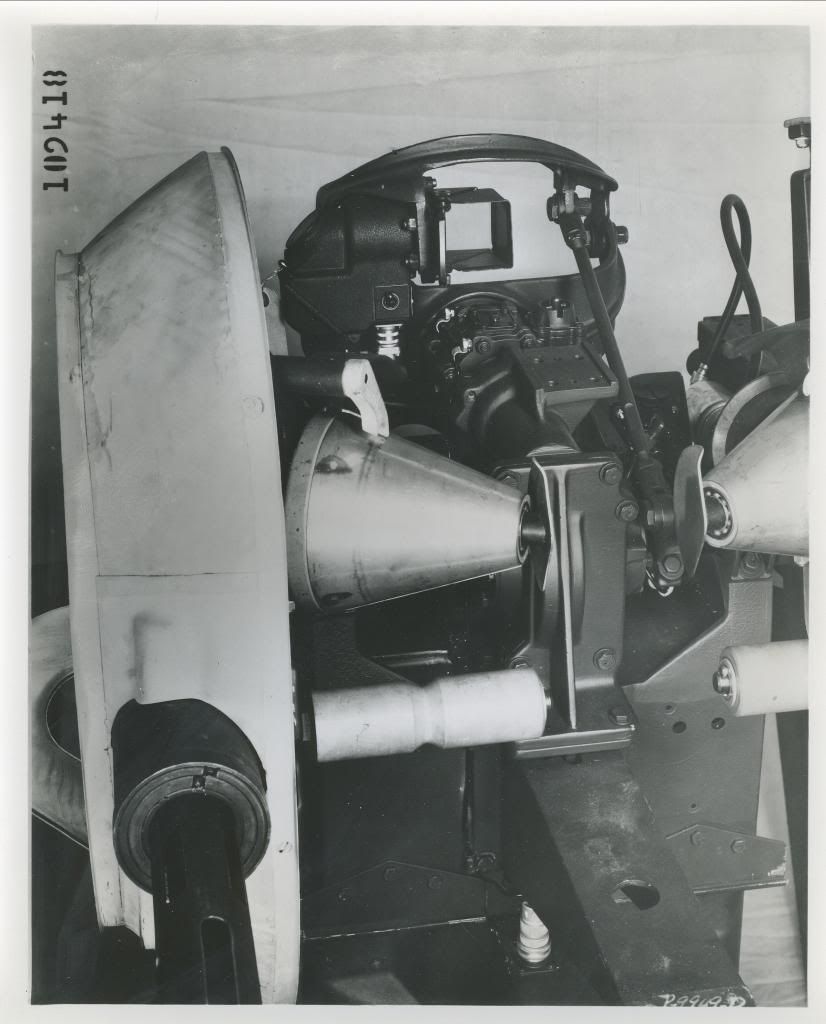

Can anyone identify this unknown (at least for me) aircraft turret.

Absolutely no info about it except that it's using a N-6 gunsight and so should be WWII.

Thanks

Laurent

I'm not good on turrets, but it looks like a ball turret on it's side with most of the panels removed.
Jerry

_________________
"Always remember that, when you enter the ocean or the forest, you are no longer at the top of the food chain."

Rotate the photo to the right and you will find a Bendix upper turret used on the B-25 series of aircraft.

_________________
To donate to the PV-2D project via PayPal click here http://www.twinbeech.com/84062restoration.htm

We brought her from: to this in 3 months: Help us get her all the way back

All donations are tax deductible as the Stockton Field Aviation Museum is a 501c3 nonprofit organization. Tell a friend as the Harpoon needs all the help she can get.

Thank you!

Taigh Ramey
Vintage Aircraft, Stockton, California
http://www.twinbeech.com
'KEEP ‘EM FLYING…FOR HISTORY!'

Great picture of a Bendix upper turret, thank you for posting it. This helps show the cable routing for the G9 gun solenoids, which I was unsure of. May I ask what the source is, and if more detailed pictures like this are available?

_________________
http://www.youtube.com/type99mg

Thanks for rotating the image right side up.

The stainless steel cone like objects are rollers for the ammunition to change direction to feed the guns. You can see a pawl that rides near the major diameter that kept the ammo from slipping back.

Check out the cool early Colt slotted cooling jacket seen on the pre war production guns.

Great photo

_________________
To donate to the PV-2D project via PayPal click here http://www.twinbeech.com/84062restoration.htm

We brought her from: to this in 3 months: Help us get her all the way back

All donations are tax deductible as the Stockton Field Aviation Museum is a 501c3 nonprofit organization. Tell a friend as the Harpoon needs all the help she can get.

Thank you!

Taigh Ramey
Vintage Aircraft, Stockton, California
http://www.twinbeech.com
'KEEP ‘EM FLYING…FOR HISTORY!'

Taigh,

Thank you. Had always looked at this photo (scan only) with reference to the gunsight in a classic vertical position. It was obviously a mistake!

Nate,

This photo comes from the Wright Field archives at Wright Patterson AFB and was copied by a collector friend in the early seventies. My understanding is that those archives haves now been split between the AF Museum and NARA.

Enoy your day,

Laurent
