The tag on it says "Assy. No. 117-43005"








Any thoughts?

Thanks in advance,
Gary

Cassett Racer ?

_________________
Matt Gunsch, A&P, IA, Warbird maint and restorations
Jack, You have Debauched my sloth !!!!!!
We tried voting with the Ballot box, When do we start voting from the Ammo box, and am I allowed only one vote ?
Check out the Ercoupe Discussion Group on facebook

I have one just like that and I was told it was for P-51H but I have never documented it though.

_________________
To donate to the PV-2D project via PayPal click here http://www.twinbeech.com/84062restoration.htm

We brought her from: to this in 3 months: Help us get her all the way back

All donations are tax deductible as the Stockton Field Aviation Museum is a 501c3 nonprofit organization. Tell a friend as the Harpoon needs all the help she can get.

Thank you!

Taigh Ramey
Vintage Aircraft, Stockton, California
http://www.twinbeech.com
'KEEP ‘EM FLYING…FOR HISTORY!'

Gary,
NAA 117- prefixes are mostly P51H part numbers.
I have found a few on a -D, such as the oil tank dip stick.
Also maybe on T-28s.
Rich

_________________
Rich Palmer

Remember an Injured Youth
benstear.org
#64- Stay Strong and Keep the Faith

BOOM BOOM, ROUND ROUND, PROPELLER GO

Don't Be A Dilbert!

Hmmmmm.....interesting.

I'm not familiar with the quadrant setup on an "H" model Mustang, and I'm embarassed to say that I don't remember the exact details of the T-28 quadrant either. It's been forever since I've flown or messed with either.

If you look closely at the first photo, you'll see a lever (bent 90 degrees) at the bottom of the quadrant. I believe that just about had to be for the mixture control, but like I said, I just cannot remember how the T-28 quadrant is set up. However, the more I (try) to think about it, that mixture lever seems more "Mustang-like" than the Trojan.....right?

My plans for this were to use it as a shifter handle for my hot rod truck, but if it's something that someone can use, then I'd rather it go to an airplane that'll fly someday.

Gary

Just did a Google search on the T-28 cockpit and found a picture of the throttle quadrant. It's completely different than what I have.......

http://www.cybermodeler.net/aircraft/t- ... -28_01.jpg


Couldn't find a cockpit shot of the P-51H, but that's starting to look like what this is for. Thanks for the input y'all.

Gary

Gary, my first thought on that was maybe it was something John Morgan could use on his XP-51G project.

Scroll way down at the link to see a pic of his throttle reconstruction (don't think it's a match though):

http://xp51g.com/?q=node/4

_________________
It was a good idea, it just didn't work.

First of all Dan, thanks for the link to that fella's project. Pretty neat undertaking he's got going there.

Second, I tend to agree with you with the fact that it doesn't look like my quadrant is a match for his.

Does anyone out there have a picture of an "H" model quadrant???

Gary

I know, I know... It's from a flight sim.

But this is positively uncanny.

http://shockwaveproductions.com/wingsof ... H-Pit2.jpg

_________________
It was a good idea, it just didn't work.

Well Dan, I believe that's it. Thanks again to all of y'all for your help.

That took right around 2 hours and 45 minutes to solve and confirm. Isn't WIX great? I think it might catch on someday.

Gary

Gary,

I don't know how much help it might be,but I found a picture of sorts of the thottle quadrant and associated gunsight ranging hardware on the website for the Mustang Restoration Project,which is restoring a P-51H (or F-51H).

Here's a link to their page on restoration progress:

http://p51h.home.comcast.net/~p51h/progress.htm

They have a contact us link.Maybe they could send you a picture that more closely matches yours....LK

That's awesome, Larry. Thanks! I'll contact them right away.

And yes, their throttle quadrant (although partially disassembled) does look like the one I have here.

Gary

Hi all,

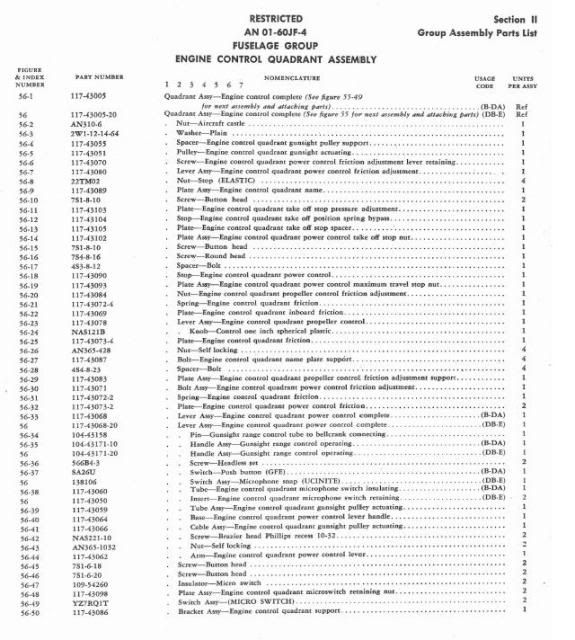

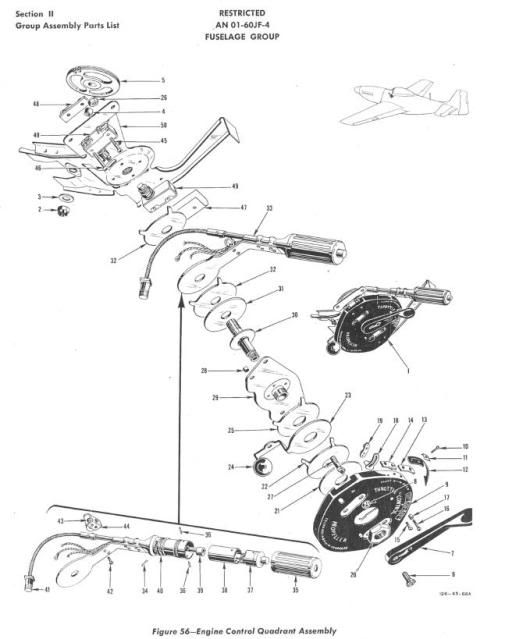

part number 117-43005 is the quadrant asy for the P-51H.





Cheers

Manukun

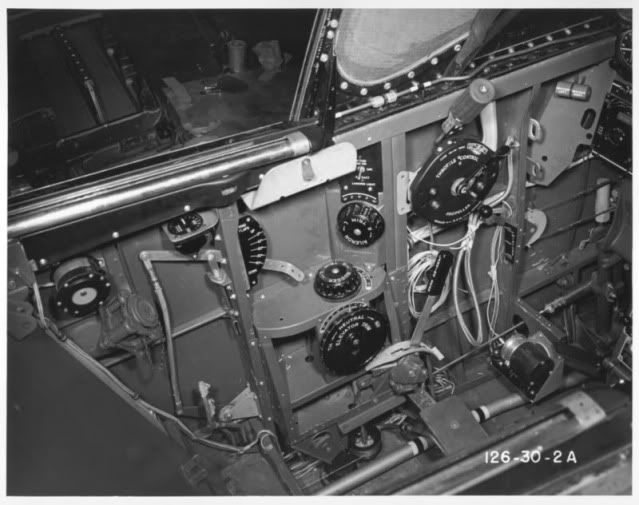

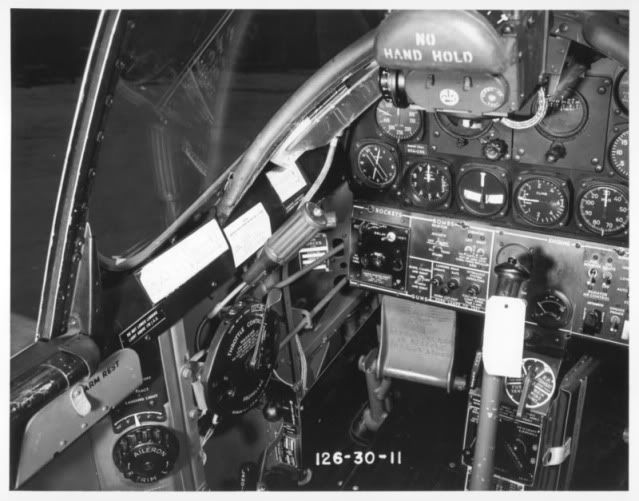

2 pictures from the original P-51H cockpit (source Swiss Mustangs from P51sig) :





Manukun

Awesome, thanks!

Gary
