Anyone know what this is?

Inside is is marked as Assembly #19016 the last digit may not be a 6

Date of MFR is Apr 9, 1943

I didn't clean it up but it is blue on one side and gray on the other. The paint seems to be original.

I realize in retrospect that some size reference in the photos would be helpful. It is about 3 feet wide and about 18 inches high (best guess from memory.)

I apologize in advanve for the cell phone quality photos.

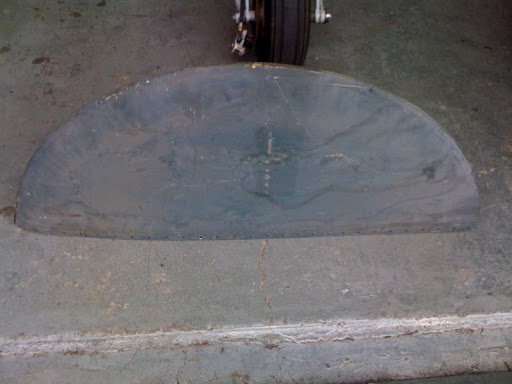

Blue Side

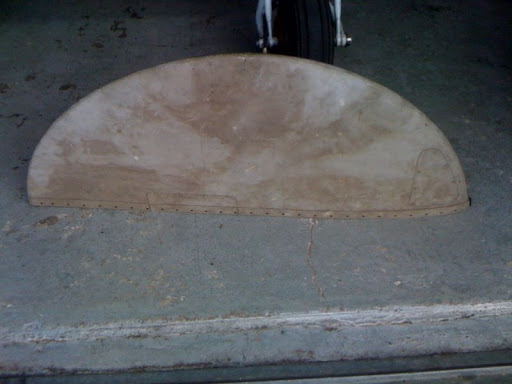

Gray Side, Note access doors

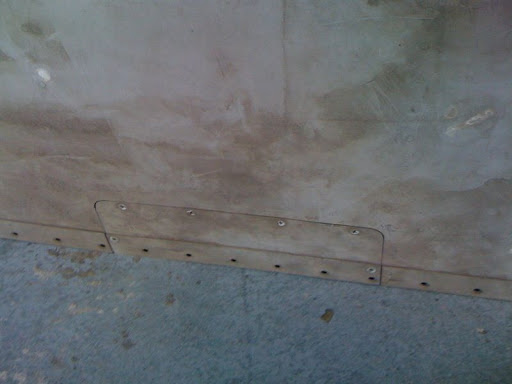

One access door

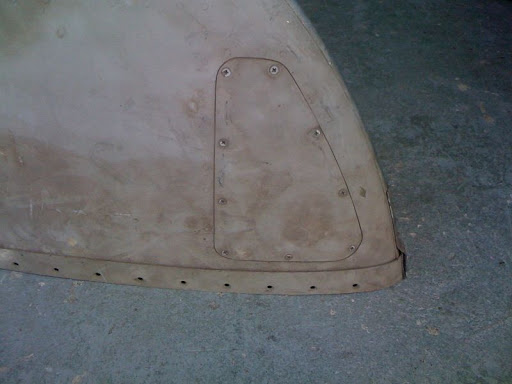

Another access door

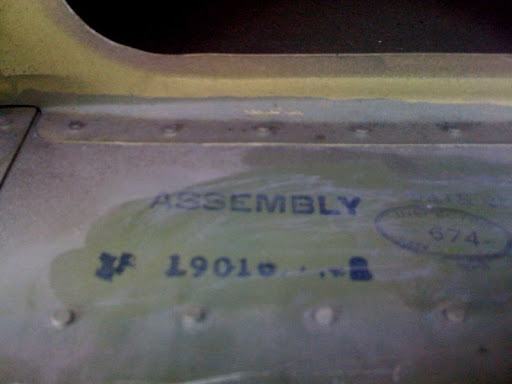

Stamp showing assembly #

_________________
Steve
www.eaglesmereairmuseum.org
www.net2nite.com


Last edited by Airplanejunkie on Sat Jul 04, 2009 11:36 am, edited 1 time in total.

Top
 Profile

warbirdcrew
 Post subject:
PostPosted: Thu Jul 02, 2009 5:05 pm
Offline
User avatar

Joined: Wed Nov 29, 2006 12:44 am
Posts: 396
Location: Vancouver, Canada
Its a wing tip of some sort. It looks sort of like a Beech 18 wing tip but that one has a fitting on the outer edge for the navigation light.

_________________
real airplanes have round engines
Top
 Profile

skymstr02
 Post subject:
PostPosted: Thu Jul 02, 2009 5:05 pm
Offline
User avatar

Joined: Sat Sep 24, 2005 10:54 am
Posts: 920
Location: Madison, MS
Wingtip? Horizontal stab tip?

_________________
If God had wanted man to fly behind a flat motor, Pratt Whitney would've built one.
Top
 Profile

Airplanejunkie
 Post subject:
PostPosted: Thu Jul 02, 2009 5:09 pm
Offline
User avatar

Joined: Thu Dec 18, 2008 10:42 pm
Posts: 348
Location: Philadelphia, Pa
skymstr02 wrote:
Wingtip? Horizontal stab tip?


We were guessing horizontal stab or elevator as there doesn't seem to be any provision for nav lights.

_________________
Steve
www.eaglesmereairmuseum.org
www.net2nite.com
Top
 Profile

51fixer
 Post subject:
PostPosted: Thu Jul 02, 2009 8:28 pm
Offline
3000+ Post Club
3000+ Post Club
User avatar

Joined: Tue Jul 17, 2007 9:11 pm
Posts: 3160
Location: MQS- Coatesville, PA
Looks a little Lockheed.
A little small in the radius to be P-38.
Rich

_________________
Rich Palmer

Remember an Injured Youth
benstear.org
#64- Stay Strong and Keep the Faith

BOOM BOOM, ROUND ROUND, PROPELLER GO

Don't Be A Dilbert!
Top
 Profile

daveymac82c
 Post subject:
PostPosted: Thu Jul 02, 2009 8:41 pm
Offline
2000+ Post Club
2000+ Post Club
User avatar

Joined: Sat Nov 25, 2006 9:18 pm
Posts: 2275
Location: Vancouver, BC
I'm not the best source on P-38 bits... but to me it looks like the outer horizonal stabilizer of a P-38.

Good luck with your quest.

Cheers,

David
Top
 Profile

retroaviation
 Post subject:
PostPosted: Thu Jul 02, 2009 8:58 pm
Offline
Co-MVP - 2006
User avatar

Joined: Fri Nov 18, 2005 10:39 am
Posts: 4468
Location: Midland, TX Yee-haw.
Nope. Definitely not a P-38 horizontal tip. (Tried to upload pictures, but my computer isn't cooperating with Photobucket tonight.) :?

Gary
Top
 Profile

K5DH
 Post subject:
PostPosted: Thu Jul 02, 2009 9:30 pm
Offline
2000+ Post Club
2000+ Post Club
User avatar

Joined: Sun Aug 13, 2006 7:11 pm
Posts: 2672
Location: Port Charlotte, Florida
Lockheed 10 Electra horizontal stab tip?

Dean the Wild Guesser
Top
 Profile

Airplanejunkie
 Post subject:
PostPosted: Thu Jul 02, 2009 9:35 pm
Offline
User avatar

Joined: Thu Dec 18, 2008 10:42 pm
Posts: 348
Location: Philadelphia, Pa
k5dh wrote:
Lockheed 10 Electra horizontal stab tip?

Dean the Wild Guesser


My first thought when I saw the thread appear with the pic of the Electra 10 :D :D

Did get me wondering if it could be from a Hudson, a PV or P2V???

_________________
Steve
www.eaglesmereairmuseum.org
www.net2nite.com
Top
 Profile

Jerry O'Neill
 Post subject:
PostPosted: Thu Jul 02, 2009 10:08 pm
Offline
3000+ Post Club
3000+ Post Club
User avatar

Joined: Sun Nov 27, 2005 10:51 pm
Posts: 4673
Location: Cheshire, CT
I thought it looked like a BT-13 wingtip.
Jerry

_________________
"Always remember that, when you enter the ocean or the forest, you are no longer at the top of the food chain."
Top
 Profile

Steve Nelson
 Post subject:
PostPosted: Fri Jul 03, 2009 12:07 am
Offline
3000+ Post Club
3000+ Post Club

Joined: Thu Dec 21, 2006 8:32 am
Posts: 4340
Location: Battle Creek, MI
Definately not a Lockheed 10..photos show the empenage having round-head rivets. I'm leaning toward a PV-1. It coult be a Hudson, but I've never seen one in blue..I believe they all came from the factory in RAF camo. The paint looks like standard USN Blue Gray over Light Gray..putting it in the 1941/42 timeframe.

SN
Top
 Profile

GARY HILTON
 Post subject:
PostPosted: Fri Jul 03, 2009 1:18 am
Offline
1000+ Posts!
1000+ Posts!

Joined: Sun Apr 08, 2007 1:38 am
Posts: 1425
Location: LONE JACK Mo.
NOT PV-2
Top
 Profile

jet1
 Post subject: p 400 wing tip
PostPosted: Fri Jul 03, 2009 10:21 am
Offline
User avatar

Joined: Tue Dec 11, 2007 5:02 pm
Posts: 786
Location: US
or p-63.....my guess
Top
 Profile

Forgotten Field
 Post subject: Grumman Part
PostPosted: Fri Jul 03, 2009 12:18 pm
Offline
1000+ Posts!
1000+ Posts!

Joined: Thu May 27, 2004 8:06 pm
Posts: 1663
Location: Baltimore MD
It is not BT-13. I am guessing Grumman based on part number.

_________________
REMEMBER THE SERGEANT PILOTS!
Top
 Profile

Steve Nelson
 Post subject:
PostPosted: Sat Jul 04, 2009 1:57 am
Offline
3000+ Post Club
3000+ Post Club

Joined: Thu Dec 21, 2006 8:32 am
Posts: 4340
Location: Battle Creek, MI

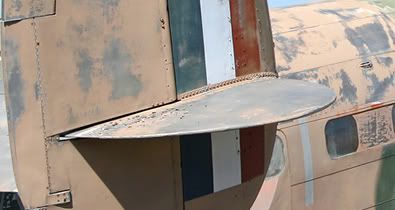

Here are some images I scrounged up on the interweb, showing the stab tip on the Lockheed Hudson. I believe the PV-1 Ventura used the same empennage. Unfortunately I haven't been able to find a clear enough view of the underside to tell for sure if it has the same access panels as the part in question.

SN
