US droptank help needed please

[reno]

Hi

I hope some of you can help!

What was the standard finish for the US 75 gallon droptank during service? I've done a little research and found they were made by Mullins and are pressed steel. I don't remember seeing any rusty looking ones so i assume they were painted (silver?)

Thanks in advance

Ben

[retroaviation]

I was under the impression that they were often times coated with the silver dope that they used on the control surfaces.

Gary

[reno]

Thanks Gary

I guess paint is an easier option for a modern restoration.

Ben

[Taigh Ramey]

I think the paper tanks were doped silver but I think the steel tanks were painted with 'aluminized' clear lacquer or enamel. At least all of the AAF drops I have seen and owned had evidence of aluminum paint and rarely any primer underneath.

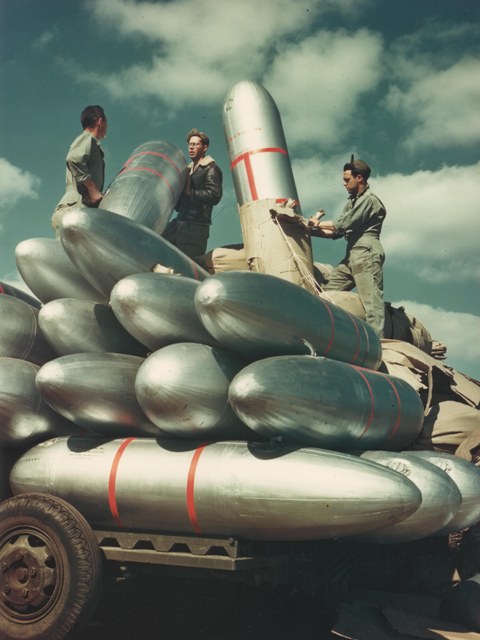

Here is a great USAF shot of 108 gallon paper drops on a bomb trailer

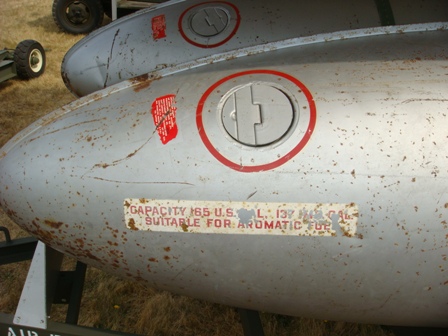

Here is a shot of a steel tank with the original finish and a water transfer decals

[retroaviation]

Thanks for the correction, Taigh. Neat photos.

Gary

[reno]

Thanks guys

On a related note, are the nut type fittings on the tanks underside some sort of drain bung? or to stop the thin tank wall getting damaged whilst on the ground?

Cheers

Ben

[steve dickey]

Thanks guys

On a related note, are the nut type fittings on the tanks underside some sort of drain bung? or to stop the thin tank wall getting damaged whilst on the ground?

Cheers

Ben

You are correct, they are a drain plug.

[aseanaero]

Can you post some photos and dimensions of the tanks ?

I run across all sorts of parts in my travels
