happymeal
PostPosted: Wed Apr 23, 2008 11:06 am
Offline

Joined: Fri Dec 10, 2004 7:00 am
Posts: 215
Pictured that thing in Betty's Dream cockpit, just above the radios behind the pilote seat... but what is that ?

_________________
Paris, FRANCE
Top
 Profile

FG1D Pilot
 Post subject:
PostPosted: Wed Apr 23, 2008 11:10 am
Offline
User avatar

Joined: Fri Mar 04, 2005 10:42 am
Posts: 450
It is a wind drift meter. You stick it out of the side of the fuselage and it has grids that you line up on ground objects passing by. It then will give you the angle of drift so you can get an idea of how the winds are treating you.

_________________
Blue Skies,
Doug

www.cavanaughflightmuseum.com
Top
 Profile

happymeal
 Post subject:
PostPosted: Wed Apr 23, 2008 11:17 am
Offline

Joined: Fri Dec 10, 2004 7:00 am
Posts: 215
Does it go through a a hole in the fuselage ?

_________________
Paris, FRANCE
Top
 Profile

Jerry O'Neill
 Post subject:
PostPosted: Wed Apr 23, 2008 12:59 pm
Offline
3000+ Post Club
3000+ Post Club
User avatar

Joined: Sun Nov 27, 2005 10:51 pm
Posts: 4666
Location: Cheshire, CT
It is stuck thru a hole in the fuselage and then removed after the measured drift is marked.
Jerry

_________________
"Always remember that, when you enter the ocean or the forest, you are no longer at the top of the food chain."
Top
 Profile

noizeedave
 Post subject:
PostPosted: Wed Apr 23, 2008 9:16 pm
Offline
User avatar

Joined: Thu Nov 29, 2007 3:22 am
Posts: 662
Location: Southern California
Goes out hole on right side of fuselage near blister packs.

_________________
California Air Heritage Foundation
B-25J / C-47B / And the list goes on....
"Never start a fight with 7 men when all your packin' is a 6-Gun! "

Proud Supporter of....American Aeronautical Foundation 501(c)(3)
http://www.aafgroup.org
Top
 Profile

Curtis Block
 Post subject:
PostPosted: Wed Apr 23, 2008 10:58 pm
Offline
User avatar

Joined: Sun Aug 05, 2007 10:36 pm
Posts: 702
Location: Wherever I happen to be.
I've got one if anyone needs it.

Just drop me a PM.

_________________
Curtis Block

I've seen too many airplanes destroyed by the term "Static Restoration."
Top
 Profile

airnutz
 Post subject:
PostPosted: Wed Apr 23, 2008 11:12 pm
Offline
3000+ Post Club
3000+ Post Club

Joined: Fri Sep 17, 2004 9:33 pm
Posts: 4707
Location: refugee in Pasa-GD-dena, Texas
Curtis Block wrote:
I've got one if anyone needs it.

Just drop me a PM.

Is there any water damage involved? :shock:

Thanks for the ID and how-to of the drift meter folks.

_________________
He bowls overhand...He is the most interesting man in the world.
"In Peace Japan Breeds War", Eckstein, Harper and Bros., 3rd ed. 1943(1927, 1928,1942)
"Leave it to ol' Slim. I got ideas...and they're all vile, baby." South Dakota Slim
"Ahh..."The Deuce", 28,000 pounds of motherly love." quote from some Mojave Grunt
DBF
Top
 Profile

Curtis Block
 Post subject:
PostPosted: Wed Apr 23, 2008 11:22 pm
Offline
User avatar

Joined: Sun Aug 05, 2007 10:36 pm
Posts: 702
Location: Wherever I happen to be.
Never submerged.

Just missing the foam rubber eye piece, otherwise complete (as far as I know).

Only used once a month, by a little old lady, on Sundays for her trip to Berlin. :lol:

_________________
Curtis Block

I've seen too many airplanes destroyed by the term "Static Restoration."
Top
 Profile

noizeedave
 Post subject:
PostPosted: Wed Apr 23, 2008 11:24 pm
Offline
User avatar

Joined: Thu Nov 29, 2007 3:22 am
Posts: 662
Location: Southern California
check your PMs

_________________
California Air Heritage Foundation
B-25J / C-47B / And the list goes on....
"Never start a fight with 7 men when all your packin' is a 6-Gun! "

Proud Supporter of....American Aeronautical Foundation 501(c)(3)
http://www.aafgroup.org
Top
 Profile

noizeedave
 Post subject:
PostPosted: Wed Apr 23, 2008 11:24 pm
Offline
User avatar

Joined: Thu Nov 29, 2007 3:22 am
Posts: 662
Location: Southern California
check your PMs

_________________
California Air Heritage Foundation
B-25J / C-47B / And the list goes on....
"Never start a fight with 7 men when all your packin' is a 6-Gun! "

Proud Supporter of....American Aeronautical Foundation 501(c)(3)
http://www.aafgroup.org
Top
 Profile

airnutz
 Post subject:
PostPosted: Wed Apr 23, 2008 11:37 pm
Offline
3000+ Post Club
3000+ Post Club

Joined: Fri Sep 17, 2004 9:33 pm
Posts: 4707
Location: refugee in Pasa-GD-dena, Texas
Curtis Block wrote:
Only used once a month, by a little old lady, on Sundays for her trip to Berlin. :lol:

:shock: :lol: :lol: :lol: Good one!

_________________
He bowls overhand...He is the most interesting man in the world.
"In Peace Japan Breeds War", Eckstein, Harper and Bros., 3rd ed. 1943(1927, 1928,1942)
"Leave it to ol' Slim. I got ideas...and they're all vile, baby." South Dakota Slim
"Ahh..."The Deuce", 28,000 pounds of motherly love." quote from some Mojave Grunt
DBF
Top
 Profile

Curtis Block
 Post subject:
PostPosted: Sat Apr 26, 2008 3:31 am
Offline
User avatar

Joined: Sun Aug 05, 2007 10:36 pm
Posts: 702
Location: Wherever I happen to be.

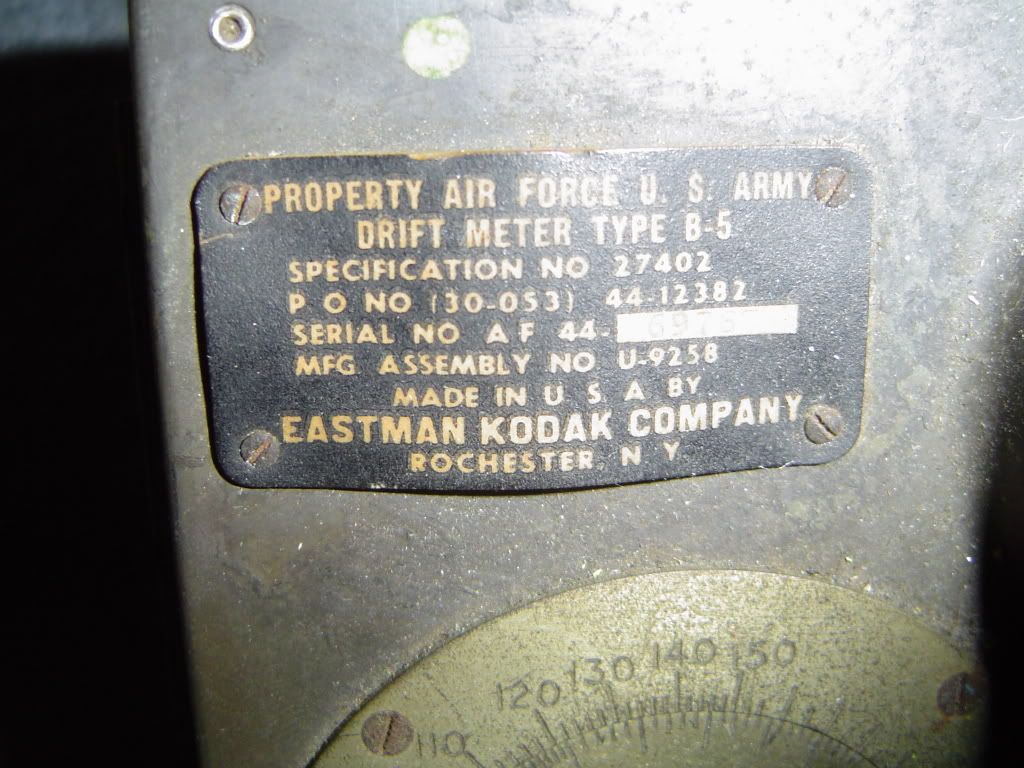

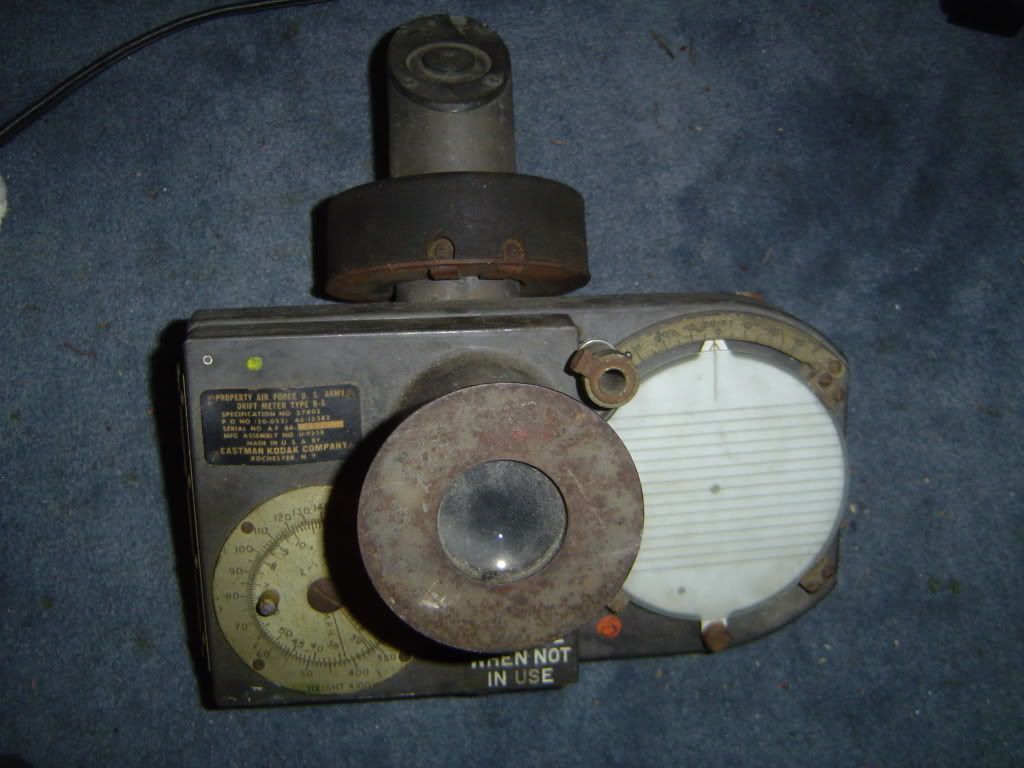

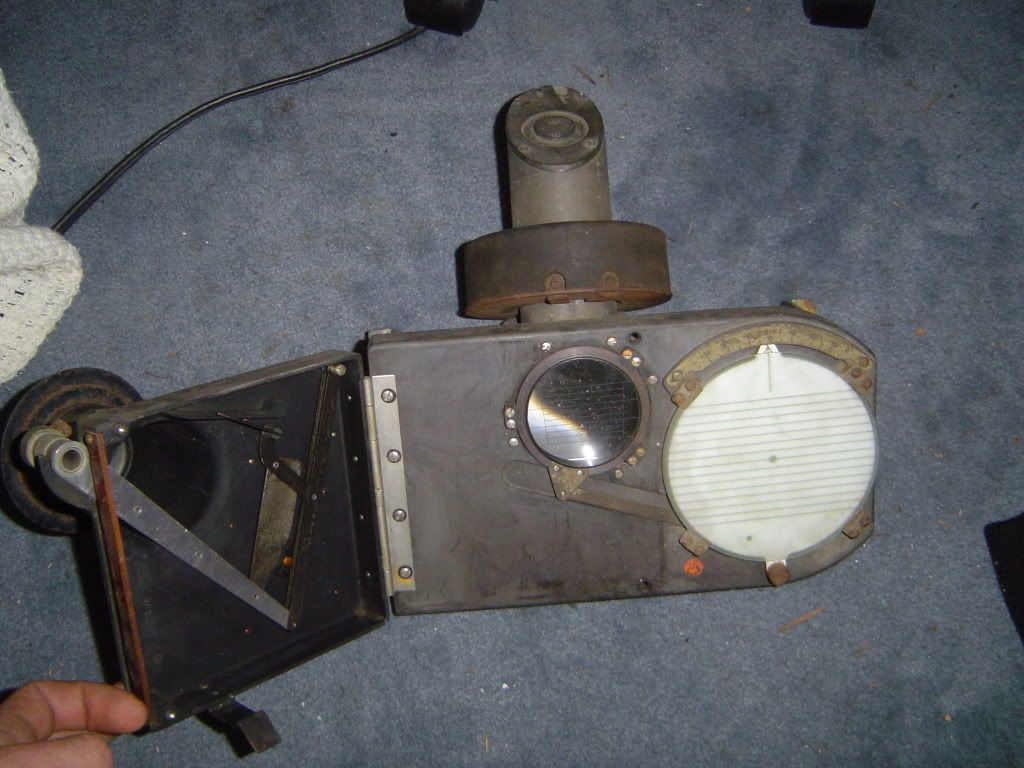

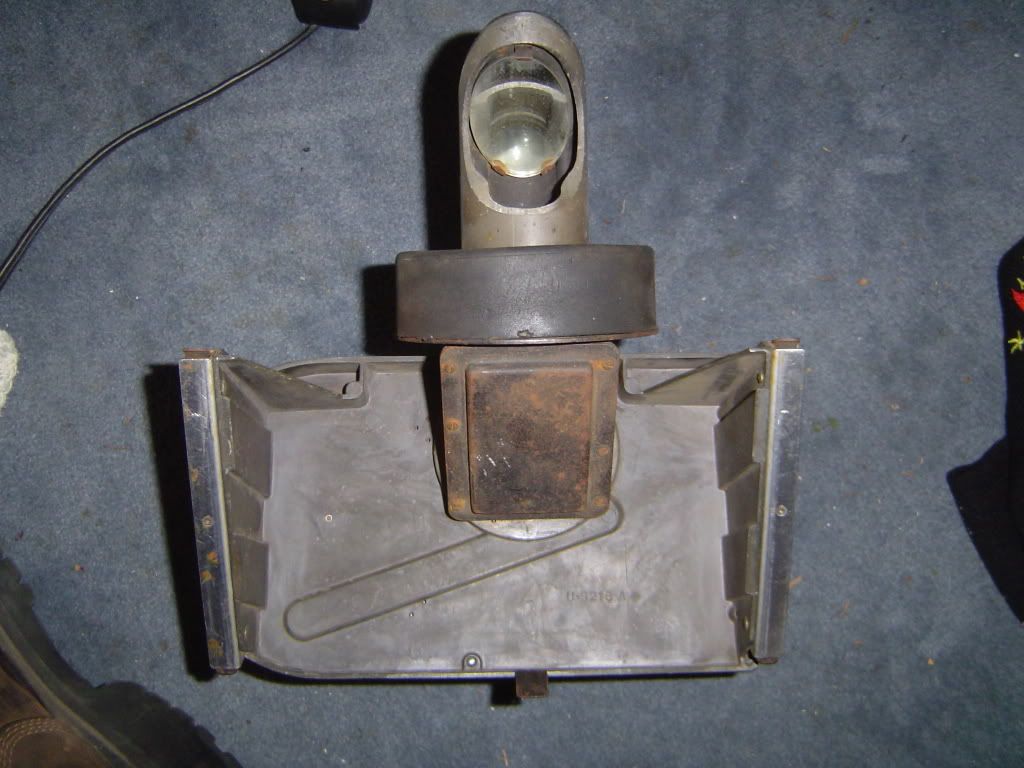

Dave,

Is this good enough to suit your needs?






It's not perfect (probably could use a good cleaning) and unfortunately I don't have the mounting stuff, but the movement on the mechanisms are smooth.

_________________
Curtis Block

I've seen too many airplanes destroyed by the term "Static Restoration."
Top
 Profile

noizeedave
 Post subject:
PostPosted: Sat Apr 26, 2008 11:07 am
Offline
User avatar

Joined: Thu Nov 29, 2007 3:22 am
Posts: 662
Location: Southern California
THATS NICE! I fabricate all parts needed from the blueprint, so remaking the mount is easy!

working on the card still too.

_________________
California Air Heritage Foundation
B-25J / C-47B / And the list goes on....
"Never start a fight with 7 men when all your packin' is a 6-Gun! "

Proud Supporter of....American Aeronautical Foundation 501(c)(3)
http://www.aafgroup.org
Top
 Profile

Curtis Block
 Post subject:
PostPosted: Sat Apr 26, 2008 12:54 pm
Offline
User avatar

Joined: Sun Aug 05, 2007 10:36 pm
Posts: 702
Location: Wherever I happen to be.
OK,
It's yours.

My terms are that it will be mounted in "Executive Sweet."

Send or post some photos when it's done.

If it's not used, I'd like it back.

P.M. me shipping info, and I can probably get it out next week. You might have to pay shipping (I have no money). I'll look into it.

_________________
Curtis Block

I've seen too many airplanes destroyed by the term "Static Restoration."
Top
 Profile

noizeedave
 Post subject:
PostPosted: Sun Apr 27, 2008 6:58 pm
Offline
User avatar

Joined: Thu Nov 29, 2007 3:22 am
Posts: 662
Location: Southern California
sounds like a plan, give me a week to take the measurements off the blueprints and see if the mount will fit with student seats being in the airplane. Rick and I have talked about putting in the drift meter for awhile but never got around to trying. Maybe this is incentive!

Ill let you know!

-Thanks
Dave
