1957 strobmerg carby mystery

[bkm1508]

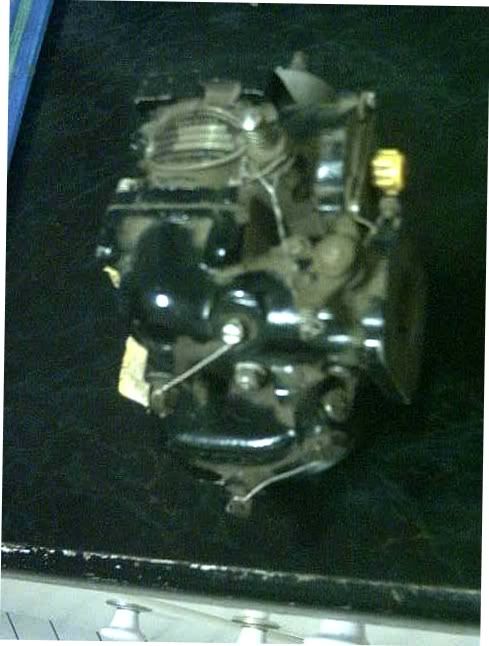

Hello other warbirds members. I have joined this forum in the hope someone can identify a stomberg carby for me and the types of aircraft engines it was fitted to. I have pics but would need to email them as I dont know how to post pics to this site. The details on the plate fixed to the side of the carby are stromberg carburetor model NA - HIE, SERIAL 5741263, PARTS LIST 392164G - 8, BENDIX AVIATION CORP there are still service tags and seals from 1959, but most of the writing is unreadable. I have used every search engine and combination i can think of, without success. Has anyone any ideas or information please. aplogies for pic quailty my camera is old. [img]http://i184.photobucket.com/albums/x83/bkm1508/CARBY/CARBY3%20IMG]http://i184.photobucket.com/albums/x83/bkm1508/CARBY/CARBY1B.jpg[/img] IMG]http://i184.photobucket.com/albums/x83/bkm1508/CARBY/CARBY2.jpg[/IMG] IMG]http://i184.photobucket.com/albums/x83/bkm1508/CARBY/CARBY1A.jpg[/IMG]

Last edited by bkm1508 on Wed May 23, 2007 9:19 pm, edited 1 time in total.

[cg51]

Look at this topic for photo posting information
http://warbirdinformationexchange.org/phpBB2/viewtopic.php?t=1822

[bdk]

Bendix-Stromberg float carburetor. These fuel controls have a designated Model NA-XXX and range in size from the A-65 Continental engines up to the R-1340 Pratt & Whitney radial engines.

NA stands for "Natural Atomization."

NA - Natural Atomization
P - Pressure
Q - Small Pressure

Barrel Type

Barrel Size from 1-3/16" in 1/4" increments

Model Letter - Major modification signifying a model change

Model Number - Minor modification

Looks like it would likely be an H1E rather than an HIE.

Maybe not an aircraft application but for a tank?

Last edited by bdk on Wed May 23, 2007 9:37 pm, edited 1 time in total.

[bkm1508]

Cheers for that info, satisfies some of my curiosity. Now as I dont own old an aircraft nor am restoring one, nor will it fit in my MOPAR, I would like to find someone who could use it for restoration or display.
