...Bacon Super T-6 specs from 'Janes All The wor1d's Aircraft 1958-59'...

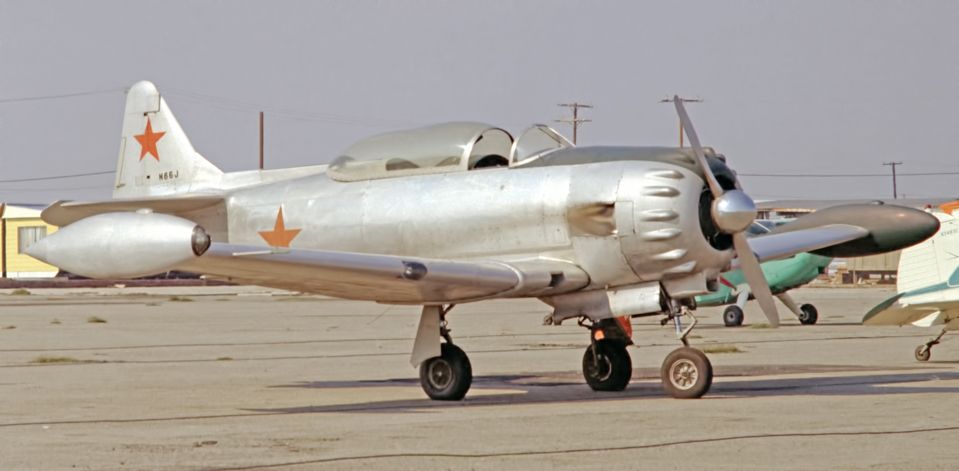

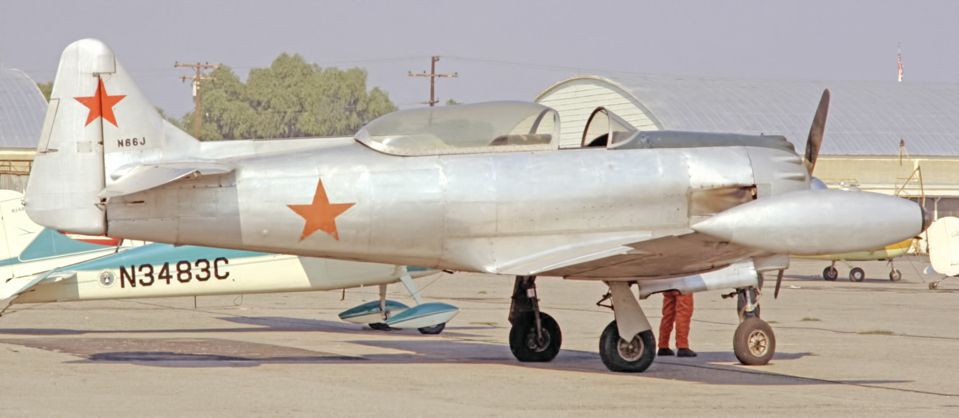

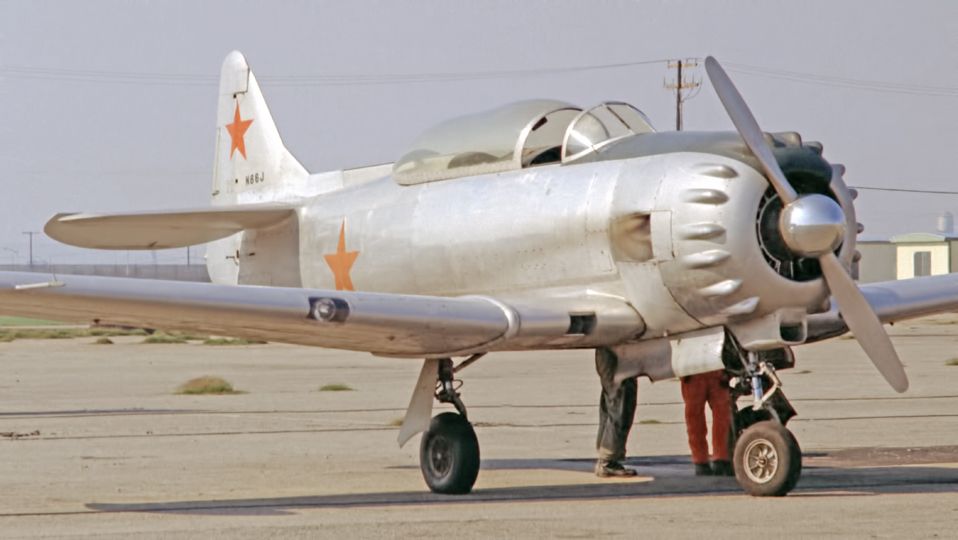

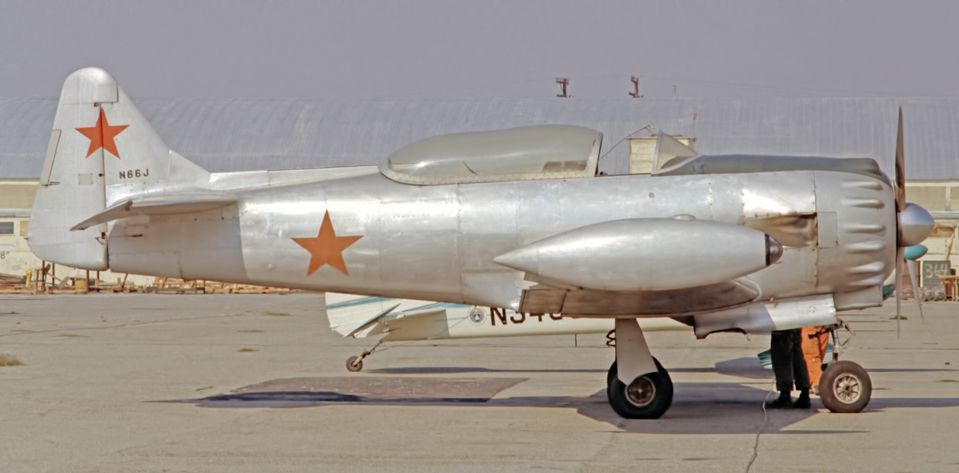

ERLE L. BACON CORPORATION Head office AND works: Municipal Airport, Santa Monica, California. This company has built an extensively modernized version of the North American T-6 (Navy SNJ) training aircraft, which it has named the Super T-6, primarily for sale to foreign air forces.
The prototype began it's taxi tests at Santa Monica Airport on December 31, 1956, and flew for the first time in Apri1, 1957.
THE company has now taken over the Thermal, Ca1ifornia, Airport where shops and hangars are availab1e for the remanufacture of the Super T-6 on a large sca1e.
Its principal features include an entirely new tricycle landing gear, a modernised power package with jet stacks and augmenter cooling, and a one-piece streamlined cockpit canopy. The cockpit and instrument panel have been modernised, and the airframe has been cleaned up generally to reduce weight and drag, including a 4 ft. reduction in wing span. New lightweight Goodyear wheels with spot-type single-disc brakes and Bendix shock-absorbers are fitted.
Although the origina1 centre-section fuel tanks have had to be deleted to make room for the relocated main landing gear when retracted, the total fuel capacity has been increased slightly by substituting two 50 U.S. gallon wing-tip tanks.
Because of this, and the generally cleaner design, cruising range is increased by approximately 20%. Cruising speed is increased by 45 m.p.h.
0ptional equipment includes .30 in. machine-guns, bomb racks and rocket launchers.
span 38 ft. 6 in. Length 29 ft. 6 in. Height 11 ft. 8 1/2 in. wheel track 8 ft. 6 in.
Max. speed approx. 225 mp.h. Cruising speed (64% power) 215 m.p.h.
Rate of c1imb at S/L over 1,750 ft./min.
...the WIX registry...
http://www.warbirdregistry.org/texanreg ... 82028.html.
