I saw this on the popular auto auction website "Bring A Trailer.
The seller says it's from a F4U-1D.

Comments and information would be welcome since belly tank racers are a big part of racing (usually dry lakes like Bonneville and Muroc) and hot rod history. As both a car and aviation fan and writer, I'm curious about them.

https://bringatrailer.com/2018/08/08/fo ... ly-tanker/

_________________
Remember the vets, the wonderful planes they flew and their sacrifices for a future many of them did not live to see.


Top
 Profile

PostPosted: Thu Aug 09, 2018 4:26 am
Offline
Corporal

Joined: Tue Nov 13, 2012 7:38 pm
Posts: 21
I love the radiator placement.


Top
 Profile

PostPosted: Thu Aug 09, 2018 5:55 am
Offline
Group Captain
User avatar

Joined: Sat Apr 05, 2014 5:49 pm
Posts: 614
I don't believe I've ever seen a tank like that on any Corsair. Looks more jet-age to me.


Top
 Profile

PostPosted: Thu Aug 09, 2018 2:19 pm
Offline
1000+ Posts!
1000+ Posts!

Joined: Sun May 30, 2004 9:56 am
Posts: 1304
Location: Brush Prairie, WA, USA
looks like one off a P-38

_________________
GOOD MORNING, WELCOME TO THE UNITED STATES OF AMERICA
Press "1" for English.
Press "2" to disconnect until you have learned to speak English.


Top
 Profile

PostPosted: Thu Aug 09, 2018 2:50 pm
Offline
1000+ Posts!
1000+ Posts!
User avatar

Joined: Sat Jan 14, 2006 7:18 pm
Posts: 1203
Location: Meriden,Ct.
Were these tanks really designed for only one plane in mind ?

Phil

_________________
A man's got to know his limitations.


Top
 Profile

PostPosted: Thu Aug 09, 2018 5:51 pm
Offline
Group Captain
User avatar

Joined: Sat Apr 05, 2014 5:49 pm
Posts: 614
phil65 wrote:
Were these tanks really designed for only one plane in mind ?

Phil

Some were, yes.

For example, I can't recall ever seeing a set of F-86 tanks on anything else.


Top
 Profile

PostPosted: Thu Aug 09, 2018 11:36 pm
Offline
Group Captain

Joined: Fri May 21, 2004 11:31 am
Posts: 412
Location: A pool in Palm Springs
For car guys drop tank ID is really tough, and generally they hear things correct, but regurg in error.

It is a Corsair tank, but a later one. A fairly common tank these are seen on F4U-4 and on, F7F and AD most commonly today. While several contemporary cars use this tank, it is not the pleasing "big" P-38 tank (steel) that is what everyone doing this is seeking. The Lockheed tanl is all compound curves, and its teardrop shape was used on the best looking "Lakesters" of the time.

Here is a typical installation...


Attachments:
F4U-5NLa.jpg [ 117.36 KiB | Viewed 805 times ]


Last edited by Joe Scheil on Thu Aug 09, 2018 11:41 pm, edited 1 time in total.
Top
 Profile

PostPosted: Thu Aug 09, 2018 11:40 pm
Offline
Group Captain

Joined: Fri May 21, 2004 11:31 am
Posts: 412
Location: A pool in Palm Springs
Taken from Taigh's thread...this is the "P-38" tank that is most desirable. Its really a Lockheed tank I believe and came is several sizes, bigger desirable one used on PV-2 and PBY aircraft most commonly. P-61 tank was similar if not identical.

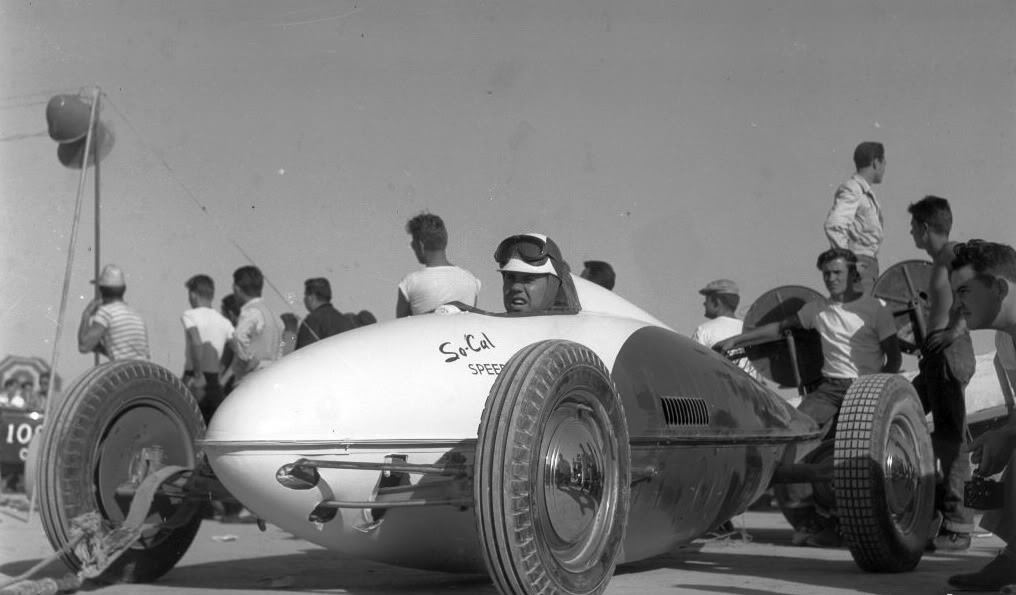

The So-Cal Lakester is the most famous and iconic of the breed and was really something. What is important to remember is just prior to WWII the World Land Speed Record was attained by the Auto-Union and Mercedes Silver Arrow cars at a state sponsored cost of Millions of Reichmarks. Incidentally, that record, set by Rudolf Carriciola was 268mph over a flying kilometer. That record still stands as the highest speed ever attained on a public road. Ninety Minutes later, Bernd Rosemeyer was killed attempting to best that mark. Shortly after WWII, Southern California Hot Rodders attempted to recapture the land speed record using parts made by small cottage industry folks working with common and cheap passenger car engine and suspension parts. They went pretty darn fast for a lot less money. Pretty darn cool.


Attachments:
SoCAl.jpg [ 60.92 KiB | Viewed 801 times ]
PV-2.jpg [ 118.86 KiB | Viewed 801 times ]
Top
 Profile

PostPosted: Fri Aug 10, 2018 7:34 am
Offline
1000+ Posts!
1000+ Posts!
User avatar

Joined: Wed May 30, 2007 3:57 pm
Posts: 1563
Location: Minnesota
The drop tank used to make the car is a Douglas Mk.8-series 300-gallon tank, which had applications to post-WWII Douglas aircraft, such as Skyraiders. There were a few different versions of the tank, some with tail fins. Here is another of the exact same type:
http://www.forgottenfield.com/amg/fuel/

And another:
https://www.instagram.com/p/uYlpKDL_WZ/

Here is a photo showing a Skyraider with these 300-gallon tanks installed (which I originally found mistakenly labeled as the smaller 150-gallon type). In order to carry these, the hardpoints had to support 2,000 lbs., rather than just the 1,000 lbs. of the 150-gallon tanks, and therefore I believe were not suited for Corsairs.



The tank fitted to the Corsair in Joe's post, although similar in design, is only half the size at 150-gallons (too small to make a belly tank racer out of, at least for a grown person).

This first picture is of the exact same 150-gallon tank as fitted to the Corsair in Joe's post (the Collings Foundation F4U-5) - similar design, but only half the size, and numerous detail differences. It could be and was used on a number of different aircraft: http://www.angelfire.com/art2/dashvii/i ... optank.JPG

And more photos of the late WWII/post-WWII 150-gallon tank: viewtopic.php?p=382152

If it is hard to see the difference in size between the 150-gallon and 300-gallon tanks, just look at the difference in the proportion of the size of the fuel cap compared to the size of the tank, and the slightly different locations of the fuel caps.


Top
 Profile

PostPosted: Fri Aug 10, 2018 5:44 pm
Offline
Group Captain
User avatar

Joined: Sat Apr 05, 2014 5:49 pm
Posts: 614
JohnTerrell wrote:
The drop tank used to make the car is a Douglas Mk.8-series 300-gallon tank, which had applications to post-WWII Douglas aircraft, such as Skyraiders. There were a few different versions of the tank, some with tail fins. Here is another of the exact same type:
http://www.forgottenfield.com/amg/fuel/

And another:
https://www.instagram.com/p/uYlpKDL_WZ/

Here is a photo showing a Skyraider with these 300-gallon tanks installed (which I originally found mistakenly labeled as the smaller 150-gallon type). In order to carry these, the hardpoints had to support 2,000 lbs., rather than just the 1,000 lbs. of the 150-gallon tanks, and therefore I believe were not suited for Corsairs.



The tank fitted to the Corsair in Joe's post, although similar in design, is only half the size at 150-gallons (too small to make a belly tank racer out of, at least for a grown person).

This first picture is of the exact same 150-gallon tank as fitted to the Corsair in Joe's post (the Collings Foundation F4U-5) - similar design, but only half the size, and numerous detail differences. It could be and was used on a number of different aircraft: http://www.angelfire.com/art2/dashvii/i ... optank.JPG

And more photos of the late WWII/post-WWII 150-gallon tank: http://www.warbirdinformationexchange.o ... p?p=382152

If it is hard to see the difference in size between the 150-gallon and 300-gallon tanks, just look at the difference in the proportion of the size of the fuel cap compared to the size of the tank, and the slightly different locations of the fuel caps.

I think we have a winner. This tank looks most like the tank in the car link to me. :drink3:


Top
 Profile

PostPosted: Fri Aug 10, 2018 7:43 pm
Offline
Group Captain
User avatar

Joined: Mon May 03, 2004 8:01 am
Posts: 801
Location: FL
Saw this one for sale at Mecum Auction in Kissimmee a couple years ago.
Looks safe to me...


_________________
Bill



Top
 Profile

PostPosted: Fri Aug 10, 2018 8:54 pm
Offline
Group Captain
User avatar

Joined: Sat Apr 05, 2014 5:49 pm
Posts: 614
wls3 wrote:
Saw this one for sale at Mecum Auction in Kissimmee a couple years ago.
Looks safe to me...


Yeah, what could possibly go wrong? :lol:

But seriously, is that a real jet/rocket engine, or is this just somebody's idea of Yard Art? (I suspect the latter.) :?


Top
 Profile

PostPosted: Fri Aug 10, 2018 9:09 pm
Offline
1000+ Posts!
1000+ Posts!
User avatar

Joined: Wed May 30, 2007 3:57 pm
Posts: 1563
Location: Minnesota
This photo (by Rafal Wolinski) was just posted by the Planes of Fame on their Facebook page today, of the Friedkin Skyraider, and my immediate attention went right to the drop tank - it too is the exact same type Douglas 300-gallon tank as used to make the belly tank car that is the subject of this thread:

https://scontent.ffcm1-2.fna.fbcdn.net/ ... e=5C11E662


Top
 Profile

PostPosted: Fri Aug 10, 2018 10:39 pm
Offline
1000+ Posts!
1000+ Posts!

Joined: Sun May 30, 2004 9:56 am
Posts: 1304
Location: Brush Prairie, WA, USA
looks like the rocket car tank is going back to front
