Object inside Skyraider Canopy
Sat Feb 03, 2007 2:37 pm

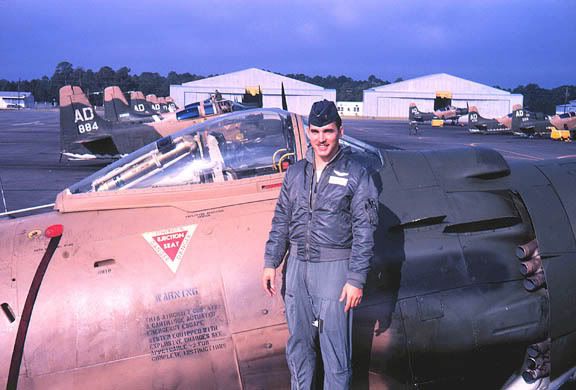

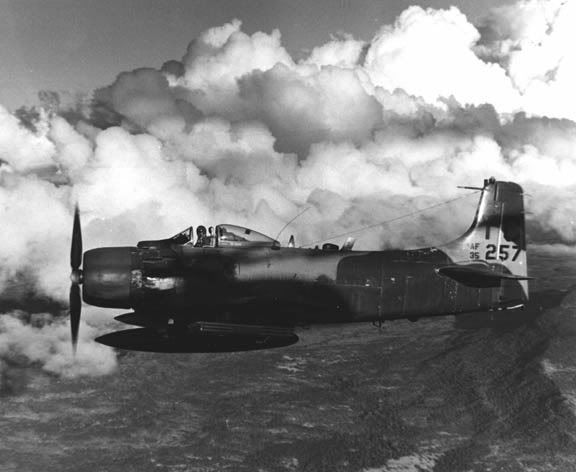

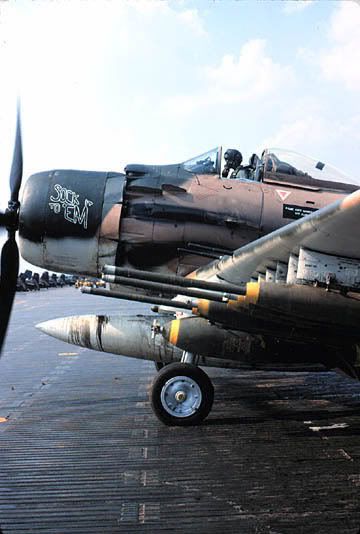

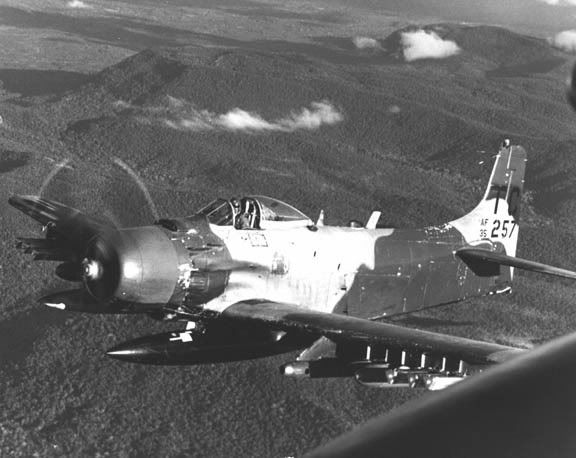

I have been puzzled by this dark spot located on the upper right side of the canopy just behind the pilots head. Can anyone tell me just what it is?
http://i166.photobucket.com/albums/u103 ... ady257.jpg
http://i166.photobucket.com/albums/u103 ... onwing.jpg
http://i166.photobucket.com/albums/u103 ... /bl257.jpg
http://i166.photobucket.com/albums/u103 ... gmj029.jpg
New at this photo posting, lets see how it goes. Thanks
Tom
http://i166.photobucket.com/albums/u103 ... ady257.jpg
http://i166.photobucket.com/albums/u103 ... onwing.jpg
http://i166.photobucket.com/albums/u103 ... /bl257.jpg
http://i166.photobucket.com/albums/u103 ... gmj029.jpg
New at this photo posting, lets see how it goes. Thanks
Tom
Sat Feb 03, 2007 2:56 pm
This is what I am working on and need to now add detail. The spot in the canopy is something I want to add, just need to know what it is, its killing me.
Sat Feb 03, 2007 3:08 pm
Flux Capacitor?
Sat Feb 03, 2007 3:33 pm
The parts manual shows nothing there. It could possibly be something to protect the canopy from rubbing against the various items behind the headrest/armor.
Gary
Gary
Sat Feb 03, 2007 5:01 pm
Nice 'raider Tom, Ziroli?
Sat Feb 03, 2007 5:44 pm
Yes, Ziroli. My Top Gun entry this year. Working hard on it now that I have the test flights over.
Its a beast!
Detailing this plane is what brought this question on. I have even spoken to two guys that flew the very aircraft I am replicating and they do not know. Someone will know.
t
Its a beast!
Detailing this plane is what brought this question on. I have even spoken to two guys that flew the very aircraft I am replicating and they do not know. Someone will know.
t
Sat Feb 03, 2007 7:04 pm
Well it appears that they all didn't have it whatever it is.
????
Sat Feb 03, 2007 8:25 pm
Well it appears that they all didn't have it whatever it is.
You'll only see that on those with the Yankee extraction system.
This system functions by means of a extraction rocket similar in principle to the drogue gun systems on normal ejection seats.
Once the catapult charge fires, the spin stabilized rocket is fired when the pendant lines reach full stretch.
Actuation of the system is effected after jettison of the canopy. The rocket then is erected by means of a pyrotechnic piston
and lever under the erector/launcher. The rocket is then launched from the rear wall of the cockpit and by means of a pair of
Perlon pendants (rope-like straps) pulls the pilot up and out of the cockpit.
The parachute is rigged with an automatic opening system which is activated after the rocket pendants separate from the parachute risers. The system includes a set of rails to
allow the seat back to rise up and the seat pan is articulated to assist in the positioning of the pilot to the vertical as the rocket extracts him.
Sat Feb 03, 2007 10:14 pm
Thanks Jack. I too had noticed that not all had it.
But what is it?
t
But what is it?
t
Sat Feb 03, 2007 10:19 pm
eoselon wrote:Yes, Ziroli. My Top Gun entry this year. Working hard on it now that I have the test flights over.
Per chance have you seen this one? Lots of really good information in the thread if you have not seen it yet.
http://www.rcscalebuilder.com/forum/for ... PN=1&TPN=1
Sat Feb 03, 2007 10:35 pm
It may be an antenna for detecting radar or missiles.
???
Sat Feb 03, 2007 11:03 pm
It was on just those with the Yankee Extraction System.
A Spad pilot told me it's just a pad to protect the canopy
plexi from the rockets mounted directly underneath.
Col Bill Jones won the MOH in the Spad when flak hit
the rockets and he contunued the mission suffering serious burns
Col. William A. Jones, 602nd Special Operations Squadron, U.S. Air Force, distinguished himself as the pilot of an A-1H Skyraider aircraft near Dong Hoi, North Vietnam. On Sept. 1, 1968, as the on-scene commander in an attempted rescue of a downed U.S. pilot, Jones' aircraft was repeatedly hit by heavy and accurate anti-aircraft fire.
On one of his passes, Jones felt an explosion beneath his aircraft and his cockpit rapidly filled with smoke. With complete disregard of the possibility that his aircraft might still be burning, he continued his search for the downed pilot.
He sighted a multiple-barrel gun position firing at him from near the survivor's position. He could not attack the gun position on that pass for fear he would endanger the downed pilot. On two subsequent passes, Jones attacked the position with cannon and rocket fire. On his second pass, the aircraft was hit with automatic weapons fire. One round hit the Yankee Extraction System rocket mounted behind the headrest, igniting the rocket.
His aircraft burst into flames in the center fuselage section, with flames engulfing the cockpit area. He pulled the extraction handle, jettisoning the canopy. The influx of fresh air made the fire burn with intensity for a few moments, but since the rocket motor had already burned, the extraction system did not pull Jones from the aircraft.
Despite searing pains from severe burns sustained on his arms, hands, neck, shoulders, and face, Jones pulled into a climb and attempted to transmit the location of the downed pilot and the enemy gun position to the other aircraft in the area.
His calls were blocked by other transmissions repeatedly directing him to bail out and within seconds his transmitters were disabled and he could receive only on one channel. Disregarding his injuries, he flew his crippled aircraft back to his base and passed on essential information for the rescue rather than bail out.
Jones successfully landed his heavily damaged aircraft and passed the information to a debriefing officer while on the operating table.
As a result of his heroic actions and disregard for his own safety, the downed pilot was rescued later that day.
Jones' profound concern for his fellow man at the risk of his life, above and beyond the call of duty, are in keeping with the highest traditions of the U.S. Air Force and reflect great credit upon himself and the Armed Forces of this country.
Jones was killed in an aircraft accident before he could be officially cited for his heroism. President Richard M. Nixon presented the Medal of Honor to his widow, Lois Jones, August 6, 1970.
A Spad pilot told me it's just a pad to protect the canopy
plexi from the rockets mounted directly underneath.
Col Bill Jones won the MOH in the Spad when flak hit
the rockets and he contunued the mission suffering serious burns
Col. William A. Jones, 602nd Special Operations Squadron, U.S. Air Force, distinguished himself as the pilot of an A-1H Skyraider aircraft near Dong Hoi, North Vietnam. On Sept. 1, 1968, as the on-scene commander in an attempted rescue of a downed U.S. pilot, Jones' aircraft was repeatedly hit by heavy and accurate anti-aircraft fire.
On one of his passes, Jones felt an explosion beneath his aircraft and his cockpit rapidly filled with smoke. With complete disregard of the possibility that his aircraft might still be burning, he continued his search for the downed pilot.
He sighted a multiple-barrel gun position firing at him from near the survivor's position. He could not attack the gun position on that pass for fear he would endanger the downed pilot. On two subsequent passes, Jones attacked the position with cannon and rocket fire. On his second pass, the aircraft was hit with automatic weapons fire. One round hit the Yankee Extraction System rocket mounted behind the headrest, igniting the rocket.
His aircraft burst into flames in the center fuselage section, with flames engulfing the cockpit area. He pulled the extraction handle, jettisoning the canopy. The influx of fresh air made the fire burn with intensity for a few moments, but since the rocket motor had already burned, the extraction system did not pull Jones from the aircraft.
Despite searing pains from severe burns sustained on his arms, hands, neck, shoulders, and face, Jones pulled into a climb and attempted to transmit the location of the downed pilot and the enemy gun position to the other aircraft in the area.
His calls were blocked by other transmissions repeatedly directing him to bail out and within seconds his transmitters were disabled and he could receive only on one channel. Disregarding his injuries, he flew his crippled aircraft back to his base and passed on essential information for the rescue rather than bail out.
Jones successfully landed his heavily damaged aircraft and passed the information to a debriefing officer while on the operating table.
As a result of his heroic actions and disregard for his own safety, the downed pilot was rescued later that day.
Jones' profound concern for his fellow man at the risk of his life, above and beyond the call of duty, are in keeping with the highest traditions of the U.S. Air Force and reflect great credit upon himself and the Armed Forces of this country.
Jones was killed in an aircraft accident before he could be officially cited for his heroism. President Richard M. Nixon presented the Medal of Honor to his widow, Lois Jones, August 6, 1970.
